Smart TV

Additional Features

Wall Mount Specifications

Certification and Compatibility

Energy Savings

Video

Analog Audio Out:  1 (side)
Digital Audio Out:   (SPDIF)1 (side)

E500i-B1

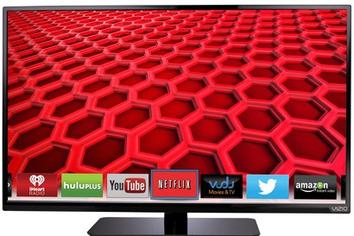

VIZIO E-Series 50" Full-Array LED Smart TV

UL/CUL, FCC Class B, HDMI 1.4, Dolby Digital Plus

HDMI Ports:  4 (2 down / 2 side)
Component:  1 (down)
Composite:  1 (down)
Tuner:  1 (down)
Ethernet:  1 (down)
USB Ports:  1 (side)

Mount Pattern:  200mm x 200mm
Screw Size:  M6
Screw Length:  20mm

Energy Compliance:  ENERGY STAR® 6.0
Power Consumption:  <61W (Avg.)
Standby Power Consumption:  <0.5W
Ambient Light Sensor:  Yes

Experience more vibrant colors, more pronounced darks, more premium apps, and truly epic entertainment at an unbeatable value on the all-new, beautifully redesigned E-Series.

VIA (VIZIO Internet Apps):  Yes, VIZIO Internet Apps Plus®
Built-in Wi-Fi:  Yes, 802.11b / g/ n

Technical Specifications

Audio

Remote Control:  XRT112
USB Music:  Yes
USB Photo:  Yes
USB Video:  Yes

Screen Size: (Diag.)50.00"
Backlight Type:  Full-Array LED
Local Dimming:  Yes, Active LED Zones™ x16
Resolution:  1920x1080
Effective Refresh Rate:  120Hz Effective Refresh Rate
Clear Action:  180
Aspect Ratio:  16:9
Dynamic Contrast Ratio:  5 million to 1
Viewable Angle:   (H/V)176°/176°
Number of Colors:  16.7 Million
OSD Language:  English, Spanish, French

Inputs

Ouputs

Speakers/Power Output:  8W x 2
DTS StudioSound™:  Yes
DTS TruVolume™:  Yes
