Technical Specifications

E701i-A3

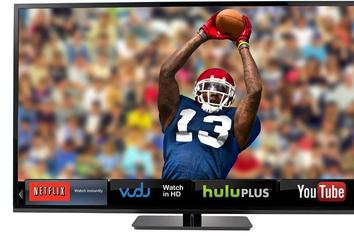

VIZIO E-Series 70" Class Razor LED Smart TV

Speakers/Power Output    10Wx2
DTS StudioSound™           Yes
DTS TruSurround               Yes
DTS TruVolume™               Yes

Energy Savings

Mount Pattern:  400mm x 400mm
Screw Size:  M6

Video

Certification and Compatibility

Ouputs

Smart TV

Analog Audio Out:  1 (down)
Digital Audio Out:    1 (down)

Inputs

Class Size                                       70” Class
Screen Size (Diag.)                         69.51"
Backlight Type                                Razor LED™
Resolution                                       1920 x 1080 (1080p)
Effective Refresh Rate                    120Hz
Dynamic Contrast Ratio                  1,000,000:1
Viewable Angle (H/V)                      176°/176°
Number of Colors                           1.07 Billion
OSD Language                               English, Spanish, French

UL, CUL, FCC Class B, HDMI 1.4 incl. CEC/ARC, Vizio AQ, Vizio PQ, Dolby Digital Plus

HDMI Ports      4 (2 side/ 2 down – HDCP, CEC, ARC x1)
Component      1 (side)
Composite        1 (shared with component)
Tuner                1 (down)
Ethernet            1 (down)
USB Ports          2 (side) - USB2.0 with charging

                                          capability 0.5A
PC                      1 VGA (down)

Additional Features

Introducing the new E-series slim frame design. The VIZIO LED TV is shattering the mold in a way only VIZIO can, with high-quality design and picture at the best value. A slim frame design with ultra thin profile makes this a stunning entertainment centerpiece in any living space.

Remote Control:  Smart Remote with Keyboard
USB Music:          Yes
USB Photo:          Yes
USB Video:          Yes

HDMI CEC:         Yes

HDMI ARC:          Yes

VIA (VIZIO Internet Apps)             VIA 1
Built-in Wi-Fi                                  802.11n single band

Energy Compliance:  ENERGY STAR® 6.0
Power Consumption:  97.7W
Standby Power Consumption:  <1W
Ambient Light Sensor:  Yes

Audio

Wall Mount Specifications
