Power

Tuner/Reception/Transmission

NTRX500


Mini Hi-Fi System

Technical Specifications

Recording media                 USB device

USB recording sources       CD
                                            tuner
                                            AUX
                                            microphone in
                                            USB
                                            Bluetooth

USB recording modes       instant record
                                          programmed tracks
                                         schedule radio program
                                         single disc
                                         single track

Loudspeakers

Source A                                 Audio in
                                                Bluetooth
                                                Disc
                                                Tuner
                                                USB

Source B                                 Audio in
                                                USB

Convenience

Remote control                28-key with

                                         2xAAA batteries


Cables/Connection          MP3 Link cable
                                        *Flat pin adaptor

Others                             batteries for remote control
                                        FM/MW antenna
                                        Quick start guide

User Manual                   B-Portuguese
                                       Spanish

Warranty                        World Wide Guarantee

                                       booklet

Metal                              Yes
Party                               Yes

Sound

Microphone                     Dual microphone

                                        sockets(6.3mm)

USB                                Dual USB host
Audio in                           3.5mm stereo line in x2
Aux in                             4 x RCA
                                       DVD
                                       Game
                                       PC in
                                      TV

Power supply                 100 - 240V AC, 50/60Hz

Audio recording

Connectivity

Auto DJ

Accessories

Audio playback

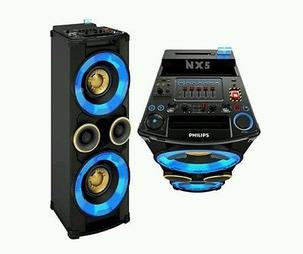

Be blown away by bass on this NX bass equipped 650W system that's ideal for any party.  Let Auto DJ mix tracks on your USB device, stream tunes from any smartphone over Bluetooth and use 260K lighting effects to et the party thumping.

Gross weight                           30.7  kg
Main unit width                        390  mm
Main unit height                       1135  mm
Main unit depth                       396.5  mm
Packaging depth                     486  mm
Packaging height                    1252  mm
Packaging width                      566  mm

Battery Type

                  -Lithium Polymer (built-in)


Operating Time on Battery

                  -5hr

Power

Dimensions

Number of discs                       1
Loader type                              slot
Karaoke                                    MIC volume
Light Effect                               Peace, Passion, Power,

                                                 Samba, Fiesta, Cielo,

                                                 Custom

Station presets                         40
Tuner bands                             FM
                                                 MW

Antenna                                   FM antenna
                                                MW antenna

Tuner enhancement                auto digital tuning
                                                auto scan
                                                Easy set (plug & play)

Output power                           800 PMPO
Total Sound Power (RMS)       650  W

Sound enhancement                 NX Bass
                                                  Dynamic Bass Boost 3 steps
                                                  digital sound control 4 modes

Equalizer                                    63Hz
                                                   250Hz
                                                   1kHz
                                                   4kHz
                                                   12kHz

DJ Mix

Number of speaker boxes          1
Speaker drivers                          8" woofer
                                                   2" tweeter

Speaker types                            bass reflex

                                                   speaker system

Playback media                      CD
                                                CD-R
                                                CD-RW
                                                MP3-CD


Disc playback modes             repeat/one/all/program
                                               repeat/shuffle/program

USB Direct playback            fast backward/fast forward

modes                                  play/pause
                                             previous/next
                                             repeat
                                             shuffle
                                             stop
